Download pdf brochure DriversScan

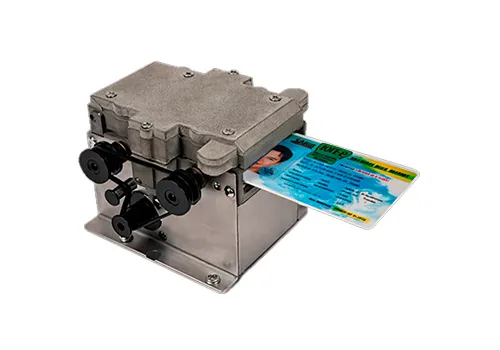

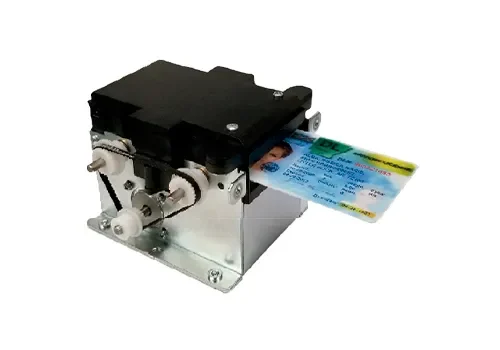

DriversScan

IMAGE CAPTURE 1D, 2D & PDF 417 BARCODES MRZ OCR
Quality Images that give you the Competitive Edge! Scans driver’s licenses and ID cards at 300/600 DPI. Full color in duplex mode.
get a free quote
Features

Duplex mode scans front and back of document in one pass.
Hinged card path for easy cleaning.
Downloadable firmware allowing for field updates.
Accepts driver’s licenses, credit cards and other Cr80 (2.125” x 3.75”) sized ID Cards.
Output image is selectable: Full Color, IR, and Monochrome.
Decode – ICAO compliant documents: MRZ Optical character recognition available with PDI software.
Decode Barcodes – 1D, 2D including PDF 417 with PDI software.
Size 3.125” H x 3.960” W x 4.035” L.
Standard 300/600 DPI resolution.
Windows and Linux compatible.
Specifications

DC POWER REQUIREMENTS
+24VDC ± 5% @ 24W

WEIGHT
The total weight of the scanner, including mechanism and PC assemblies, is approximately 1.2 lbs.

SIZE
3.125” H x 3.960” W x 4.035” L

DATA DETECTION / SCAN HEAD
Scan head array contains 12/24 dpm (305/610 dpi). Full color scanning.

SCAN SPEED
Transport scanning speed: 305 dpi, 15 ips ± 1% in monochrome & 5 ips in color.
610 dpi, 9 ips in monochrome & 3 ips in color.

IMAGE TYPE
Full 24 bit Color, IR, 8 bit Monochrome or a combination of any of these in one pass.

TEMPERATURE
Operating: +0°C to + 50°C
Storage: -25°C to + 60°C

HUMIDITY
Operating: 10 to 85% RH non-condensing
Storage: 10 to 90% RH non-condensing
Features

Duplex mode scans front and back of document in one pass.
Hinged card path for easy cleaning.
Downloadable firmware allowing for field updates.
Accepts driver’s licenses, credit cards and other Cr80 (2.125” x 3.75”) sized ID Cards.
Output image is selectable: Full Color, IR, and Monochrome.
Decode – ICAO compliant documents: MRZ Optical character recognition available with PDI software.
Decode Barcodes – 1D, 2D including PDF 417 with PDI software.
Size 3.125” H x 3.960” W x 4.035” L.
Standard 300/600 DPI resolution.
Windows and Linux compatible.
Specifications

DC POWER REQUIREMENTS
+24VDC ± 5% @ 24W

WEIGHT
The total weight of the scanner, including mechanism and PC assemblies, is approximately 1.2 lbs.

SIZE
3.125” H x 3.960” W x 4.035” L

DATA DETECTION / SCAN HEAD
Scan head array contains 12/24 dpm (305/610 dpi). Full color scanning.

SCAN SPEED
Transport scanning speed: 305 dpi, 15 ips ± 1% in monochrome & 5 ips in color.
610 dpi, 9 ips in monochrome & 3 ips in color.

IMAGE TYPE
Full 24 bit Color, IR, 8 bit Monochrome or a combination of any of these in one pass.

TEMPERATURE
Operating: +0°C to + 50°C
Storage: -25°C to + 60°C

HUMIDITY
Operating: 10 to 85% RH non-condensing
Storage: 10 to 90% RH non-condensing
